Champion 700-20SS Features
bullet

Two- 502 Easy Load 2" Tape Heads (Top & Bottom Seal)

bullet

Pop Out and Interchangeable Tape Heads

bullet

Top Tape Head Can Be Repositioned For Off Centre Seal

bullet

Adjustable Legs from 22"-32" with Casters (Custom Lengths Available)

bullet

Top Squeezers Properly Mate Top flaps Before Taping

bullet

Infeed Table (16" in Length)

bullet

Exit Table (16" in Length)



Tech

Minimum Carton Capacity Maximum Carton Capacity

Maximum Carton Capacity

4.75"L x 4"W x 4.75"H ~ L x 20"W x 20"H

~ L x 20"W x 20"H

(Custom carton sizes available) (Custom carton sizes available

Electricity Required

Belt Speed

120 V, 60hz, 10amp

77 Feet per minute
Machine Footprint  Machine Shipping Weight
67.5"L x 33.5"W x 53.25"H

(Length includes tables)

 385 lbs. (on a pallet)

 IF your application falls outside the parameters you see here please feel free to call or use our simple survey form to get a quote on a modified version of this machine

 Options

Many Box holding devices

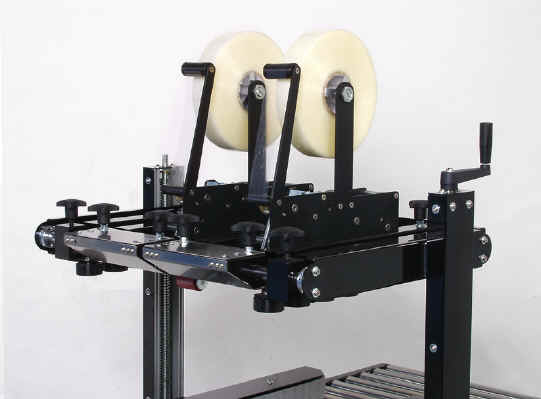

Dual top and or bottom heads for gap taping
